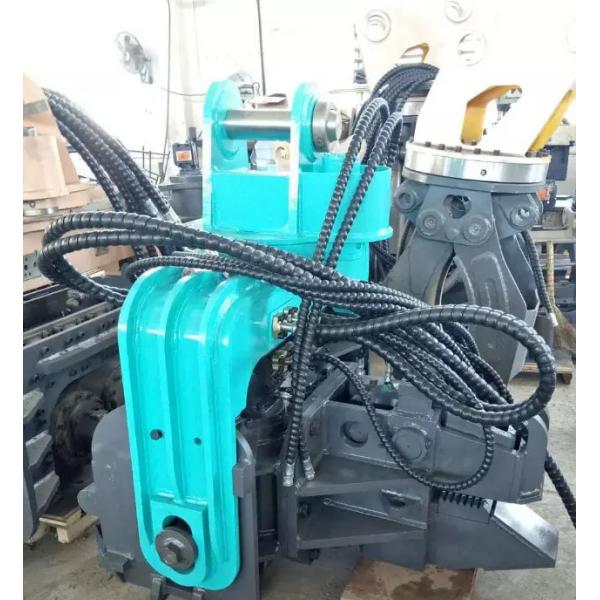

40 Tons Excavator Vibration Hammer V400 Mount Hammer For Hitachi EX400 EX400
Production Descrption
Huitong Excavator Vibro Hammer, Pile Driving Hammer, are widely used in many big projects, suitable for driving and extracting piles in different geological condition except the hard rock layer. It have four superior functions:easy operation and maintenance,Environment-friendly product,high efficiency of driving piles, long lifespan.
Huitong Excavator Vibro Hammer,can be used for river-bank maintenance and marshland working wherever onshore and offshore piling job. Suitable for excavator range from 18 to 50 ton.it's widely used in cofferdam, trestle work, offshore working platform, and also wind mill single pile or group pile. Clamp can be custom made.
Features :
1) 360 degree rotation of the middle bracket
2) Various pile driving, sheet pile, pipe pile, H-beam, steel plate, etc.
3) Excellent mobility in narrow places compared with cranes
4) The high shear load of the heavy-duty elastomer cushion prevents vibration from being transmitted to the excavator.
5) Easy installation and control. Suitable for all kinds of workplaces, congested areas, under bridges, narrow roads, minimal noise in urban renewal.
| Item | HT 300 | HT 400 |
| Eccentric Moment | 40Nm | 85Nm |
| Centrifugal Force | 300kN | 570kN |
| Amplitude | 6.8mm | 14mm |
| Frequency | 2800rpm | 2800rpm |
| Pressure | 240-260kg/cm2 | 240-260kg/cm2 |
| Oil Flow | 155-200L/min | 200-255L/min |
| Max Turning | 360degree | 360degree |
| Package Size | hammer with clamp:1450mm*1550mm*1650mm | hammer with clamp:1650mm*1700mm*1950mm |
| vice arm: 3400mm*800mm*1200mm | vice arm: 3400mm*800mm*1400mm |
| Total: 7.41cube meters | Total: 8.81cube meters |
| Net Weight | hammer with clamp: 2200kg | hammer with clamp: 2800kg |
| vice arm: 550kg | vice arm: 780kg |
| Total: 2750kg | Total: 3580kg |
| Suitable excavator | 20-35tons | 35-50tons |
Prosuction Details
