Hardox500 Steel Excavator Skeleton Bucket Attachments For SY200 SY220

Brand Name : Huitong

CertifiPCion : ISO9001

Place of Origin : Guangzhou,China

MOQ : 1 Pcs

Price : $480-1200/pcs

Payment Terms : D/A, D/P, T/T, Western Union

Supply Ability : 200 Pieces per momth

Delivery Time : 8-16 days

Packaging Details : wodden case

Color : Yellow or Customized

Material : Q345/460+NM400

Warranty : 1 Year

After-sales service provided : Online support,Video technical support

Capacity : 0.2-1.1cbm

AppliPCion : digging soil

Packing : Wooden Pallet or Customized

Width : 100mm-2200mm

Contact Now

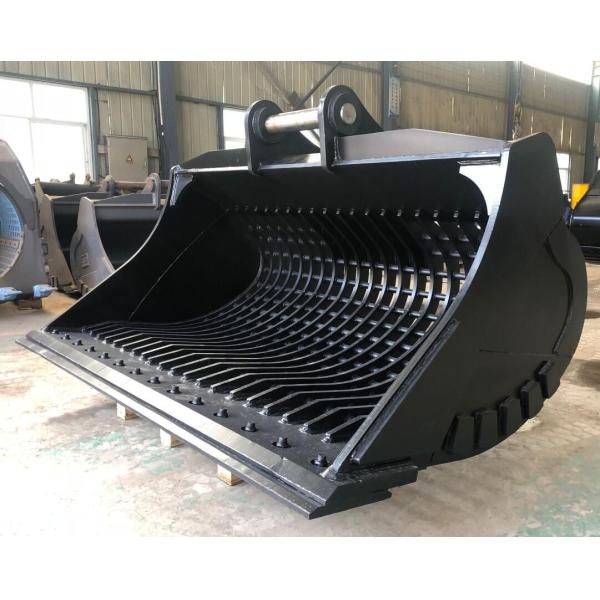

Hardox500 Steel Sieve Bucket Excavator Skeleton Bucket Attachments For SY200 SY220

Production Descrption

Huitong skeleton bucket made for a primary selection of materials of various kinds, for reclamation and cleaning of land and for a pre-selection of the resulting material from a demolition. The “gaps” of the bars is determined according to the size of the required product.

The bucket teeth are rock bucket teeth, and both sides are reinforced with high-quality steel. Strengthen product quality during use.

The product is suitable for all types of excavators

All the bars are individually welded and fixed together with longitudinal round segments to ensure solidity of the structure.The skeletal design is set to PCer for smaller as well as larger objects to meet your needs.The “gaps” of the bars is determined according to the size of the required product.

Production Details

Bucket Series
Description/AppliPCion
Features


General Purpose Bucket
HT GP Bucket are made light and aim for boosting your working efficiency.
Recommended used for digging clay, loading sand and gravel, volume loading for packed ground, tough clay, loose dirt and some
other light works
1. Light weight
2. Relative tough material (16MN/Q355)
3. Large capacity
4. Boosting working efficiency


Heavy Duty Bucket
HT HD Bucket are designed to survive in the harsh working conditions.
Recommended appliPCions: abrasive soils, compact or dense clay, loose rock and gravel
1. Heavy duty with bottom wear plate
2. Vertical shrouds added
3. Thickening plate
4. Optional weld-on lip shrounds


Severe Duty Bucket (Rock Bucket)
HT SD Bucket (Rock Bucket) are the toughest series. Our SD Bucket are designed not only to survive but also to thrive the harsh
working conditions that you faced.
1. Using Q355 for the body + Hardox
400/500/NM360 for all the wearable plate
2. Vertical shrounds added
3. Thickening plate
4. Weld-on lip shrounds added
5. Corner heel shrounds
6. Bottom wear strips added

Item / model

Capacity 1.7 1.8 1.9 2 2.1 2.2 2.3 2.4 2.5

Suitable excavator

ton

 45-55 45-55 45-55 45-55 45-55 45-55 45-55 45-55 45-55

weight

kg

1700 1800 1900 2000 2100 2200 2300 2400 2500

Maximum opening

 cm 148 145 145 160 162 165 166 167 168

Hardox500 Steel Excavator Skeleton Bucket Attachments For SY200 SY220Hardox500 Steel Excavator Skeleton Bucket Attachments For SY200 SY220Hardox500 Steel Excavator Skeleton Bucket Attachments For SY200 SY220Hardox500 Steel Excavator Skeleton Bucket Attachments For SY200 SY220Hardox500 Steel Excavator Skeleton Bucket Attachments For SY200 SY220
